♦ Machine is an economic solution for grooving on steel pipes, size range from 2".to 8" (DN50 m DN200) SCH10 to SCH40.
♦ Suitable for both mass production in workshop or on jobsite. It is a full-featured roll groover integrated with motor, hydraulic feeding pump, foot switch and pipe stand.
♦ Inbuilt high-performance gear reducing motor contributes compact size and low noise.
♦ The unique integrated hydraulic feeding pump and groove depth lock nut ensure high quality grooves and high grooving efficiency.
♦ Light weight and compact design saves investment on grooving tools.

Main Technical Parameter

Main Parameters	Paramters Content
Pipe Capacity	2"-4"(DN50-DN100, Φ60-Φ114mm) SCH10/40 steel pipe 5"-8"(DN125-DN200, Φ139-Φ219mm) SCH10/20 steel pipe
Max Wall Thickness	6mm
Power	800W
Efficient Speed	30 RPM
Voltage	220V, single phases, or customized
Frequency	50Hz or 60Hz
Drive Roller	2"-6", 8"
Groove Roller	2"-6", 8"
Gross/Net Weight	47/34 Kg
Packing Size	560x260x650mm

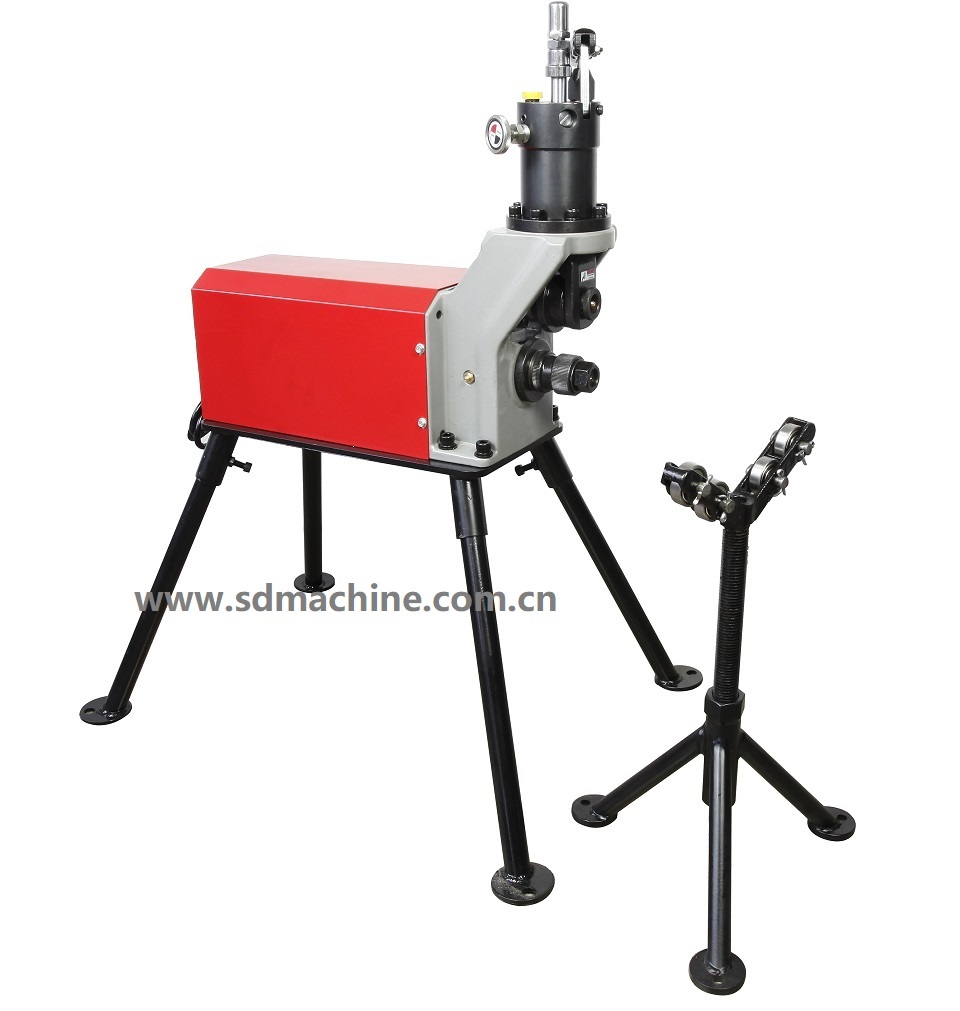

Detailed Picture
