Description

♦ Patent Gearbox driven.
♦ Self-open profiling die head, working with Shida original profiling system, enables precise straight tapes, 20mm dies performs higher threading speed and requires less power consumption.
♦ Sledge guide post is made of steel bar, with thickened lifter supporter, increases stability of machine operation, prolongs service life of machine.
♦ Threading completed in one operation
♦ Automatic oiling system, through the die head, with integral oil reservoir, prolongs service life of die.
♦Power could be increased to 1300W according to Customer's requirement.

Main Technical Parameter

Main Parameters	Paramters Content
Pipe Capacity	1/2"-2"
Applicable Threader Standard	BSPT,NPT
Output Power	750W
Efficient Speed	28 RPM
Voltage	220V or 110V single phase, or customized
Frequency	50Hz or 60Hz
Die	9CrSi is standard, HSS or 9Cr2 optional
Switch	FOR/OFF and Foot Switch optional
Reamer	1/2"-2" cone blade, 5-flute cone optional
Gross/Net Weight	74/63Kg
Packing Size	700x450x550mm

Standard Accessories

♦ one set of self-open Die Head

♦ One set of 1/2”-3/4” Die

♦ One set of 1”-2” Die

♦ One set of 1/2"-2"Cutter Kit

♦ One set of 1/2"-2"Reamer Kit

♦ Three pcs of tubular supporter

Optional Accessories

♦ Foot Switch

♦ Nipple Chuck Kit

♦ Threader Stands

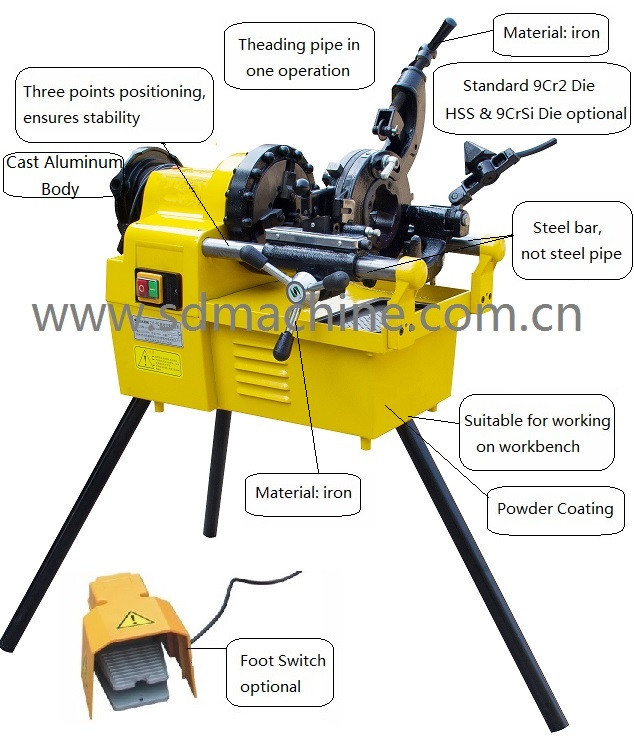

Detailed Picture

Immediate Consultation

If you are interested in our products, please leave your email, we will contact you as soon as possible, thank you!

We are willing to cooperate wholeheartedly with people from all walks of life, welcome friends from all walks of life to visit us, create brilliant!
