♦ Full size threading completed in one operation.
♦ Improved Gearbox, to increase the rotation speed up to 36RPM.
♦ Self-open profiling die head, working with Shida original profiling system, 1100W Motor, enables precise straight tapes, 20mm dies performs higher threading speed and requires less power consumption.
♦ Compact design with cast aluminum body, sledge guide post is made of steel bar, with thickened lifter supporter, increases stability of machine operation, prolongs service life of machine.
♦ Automatic oiling system, through the die head, with integral oil reservoir, prolongs service life of die.

Main Technical Parameter

Main Parameters	Paramters Content
Pipe Capacity	1/2"-3"
Applicable Threader Standard	BSPT,NPT
Output Power	1100W
Efficient Speed	18/36 RPM
Voltage	220V or 110V single phase, or customized
Frequency	50Hz or 60Hz
Die Size	1/2”-3/4”, 1”-2”, 2.1/2"-3"
Gross/Net Weight	117/101 Kg
Packing Size	950x550x575mm

Standard Accessories

♦ Two sets of self-open Die Heads
♦ One set of 1/2"-3/4" Die
♦ One set of 1"-2" Die
♦ One set of 2.1/2"-3" Die
♦ One set of 1/2"-3"Cutter Kit
♦ One set of 1/2"-3"Reamer Kit
♦ Four pcs of tubular supporter

Optional Accessories

♦ Foot Switch
♦ Threader Stands

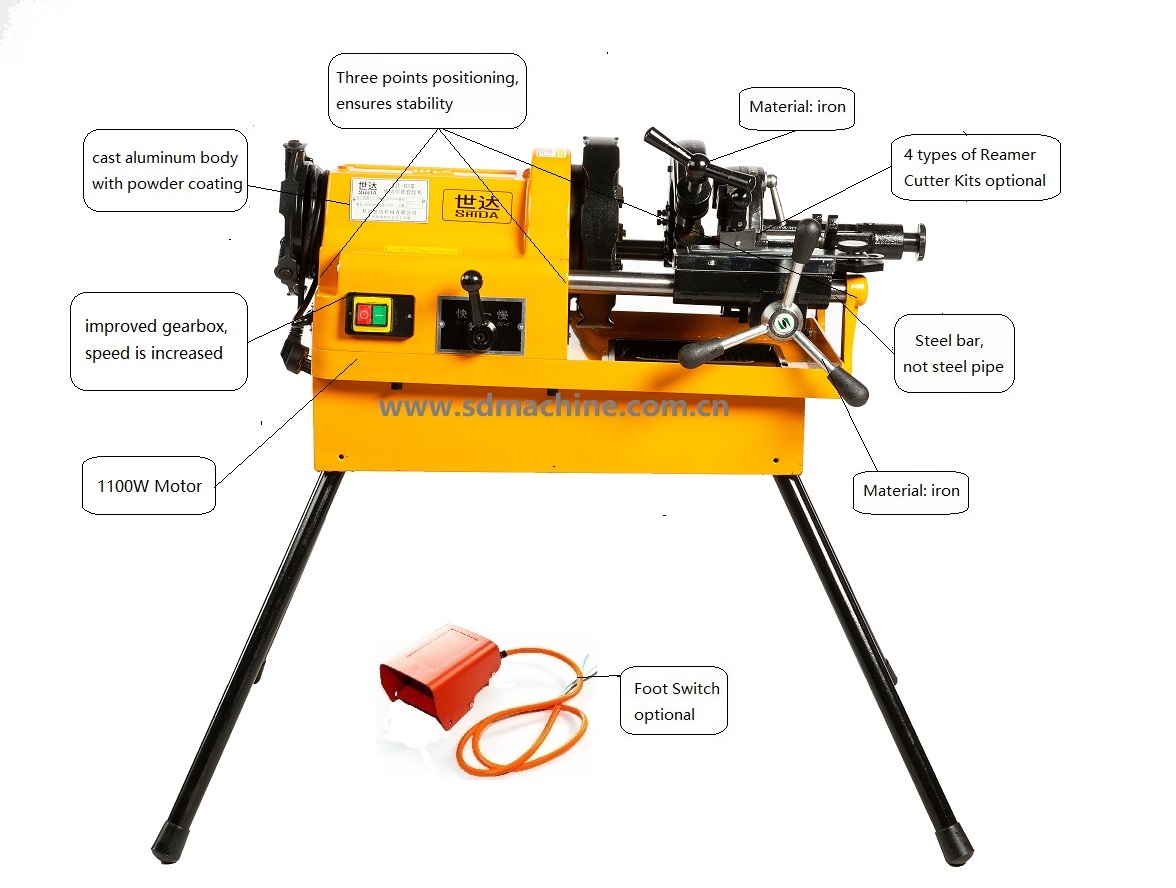

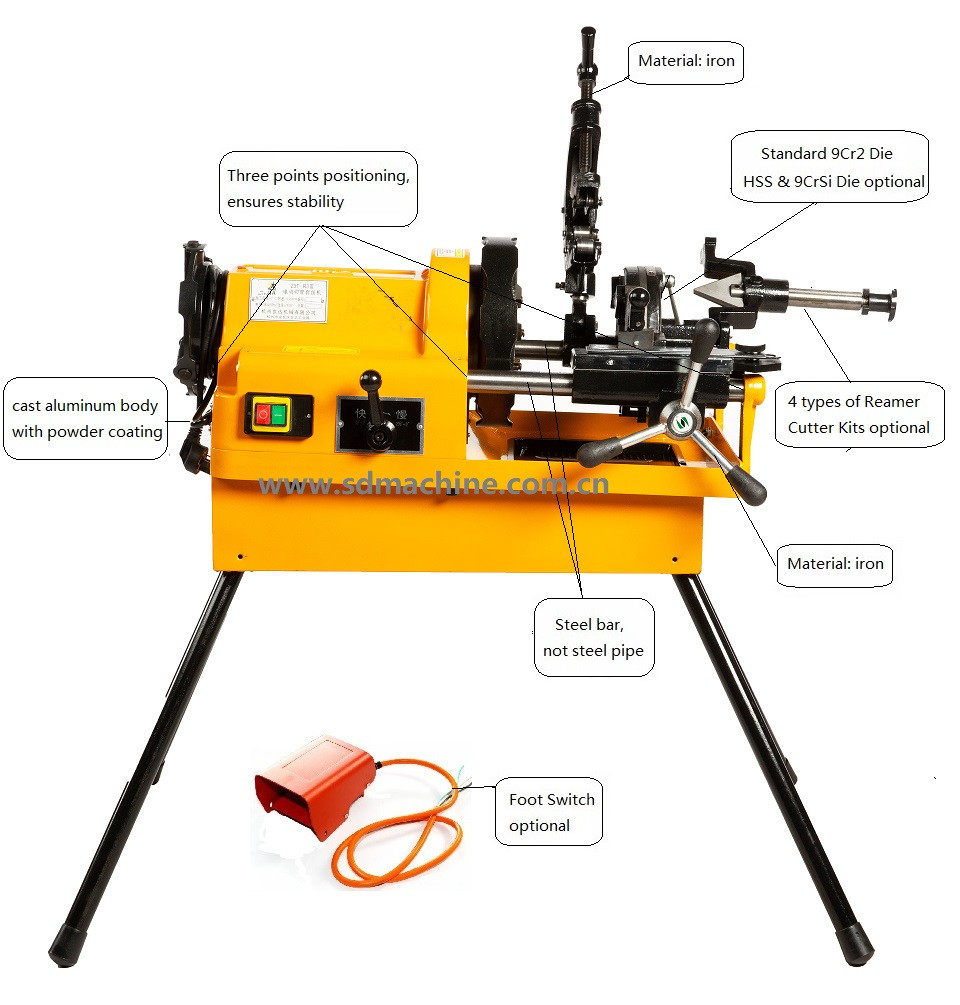

Detailed Picture
