♦ Machine is used to form roll grooves on steel pipes, size range from 2".to 12" (DN50 m DN300) SCH10 to SCH40.
♦ Suitable for both mass production in workshop or on jobsite. It is It is a full-featured roll groover integrated with motor, hydraulic feeding pump, foot switch and pipe stand.
♦ Special designed roller set prevents flare on pipe ends, easesthe installation of grooved couplings.
♦ Inbuilt high-performance gear reducing motor contributes compact size and low noise.
♦ The unique split type hydraulic system prevents oil leaking and extends service life. Goorve depth lock knob ensures high quality grooves and high grooving efficiency.

Main Technical Parameter

Main Parameters	Paramters Content
Pipe Capacity	2"-12"(DN25-DN300, Φ60-Φ300mm) SCH10/40 steel pipe
Max Wall Thickness	10mm
Power	1100W
Efficient Speed	23 RPM
Voltage	220V, single phases, or customized
Frequency	50Hz or 60Hz
Drive Roller	2"-3", 3.1/2"-6", 8"-12"
Groove Roller	2"-3", 3.1/2"-6", 8"-12"
Gross/Net Weight	130/110Kg
Packing Size	820x470x880mm

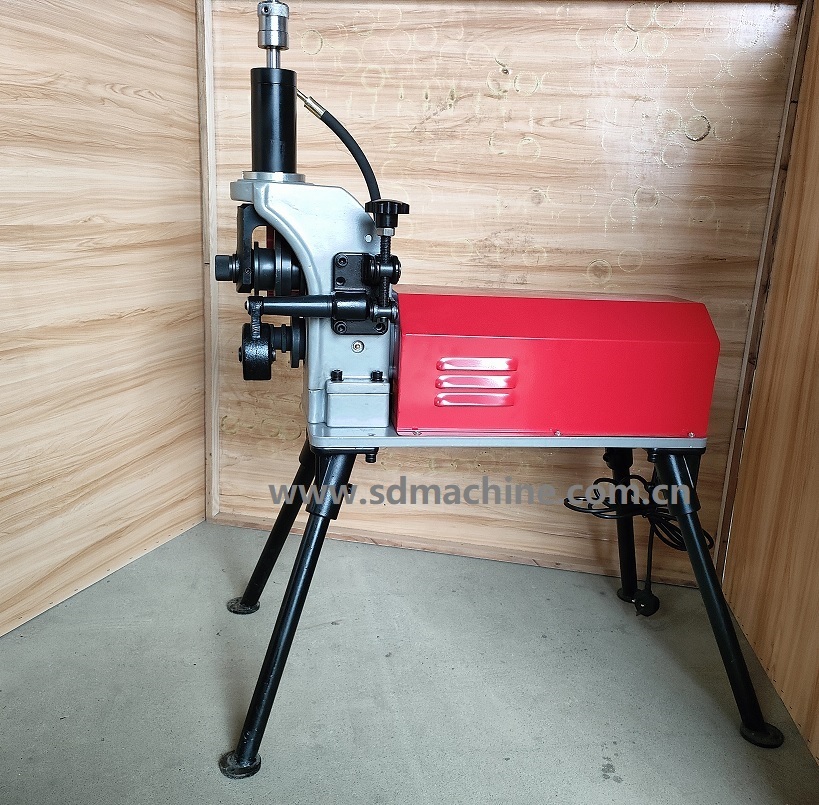

Detailed Picture
