1/2" -2" & M12-M33 Multi-Function Pipe Threading Machine
Model：Z1T-R2A Capacity: 1/2"-2" & M12-M33
Classification:
Key words:
1/2" -2" & M12-M33 Multi-Function Pipe Threading Machine
Message
Product Details
Model：Z1T-R2A
♦Full size threading in one operation.
♦50A Multi-function die head is standard, could process BSPT, NPT, conduit, Metric threads by exchanging dies.
♦Complete aluminum body, keeping machine away from corrosion.
♦Sledge guide post is made of steel bar, with thickened lifter supporter, increases stability of machine operation, prolongs service life of machine.
♦Automatic coiling system, through the die head, with integral oil reservoir, prolongs service life of die.
♦Power could be increased to 1300W according to Customer’s requirement.
Main Technical Parameter
Main Parameters | Paramters Content |
Pipe Capacity | 1/4"-2", M12-M33, C15-C51 |
Applicable Threader Standard | BSPT,NPT, Metric, BSPP, BSW (need to exchange additional dies) |
Output Power | 750W |
Efficient Speed | 28 RPM |
Voltage | 220V or 110V single phase, or customized |
Frequency | 50Hz or 60Hz |
Die Size | Standard: 1/2”-3/4”, 1”-2”, M12，M14-M16，M18-M22，M24-M27，M30-M33 Optional: 1/4”-3/8”, C15,C19-C31,C39-C51 etc |
Switch | FOR/OFF and Foot Switch optional |
Reamer | 5-flute cone blade5-flute cone blade |
Gross/Net Weight | 83/71Kg |
Packing Size | 700x450x550mm |
Standard Accessories
♦ Two sets of quick-open Die Heads
♦ One set of 1/2”-3/4” Die
♦ One set of 1”-2” Die
♦ One set of M12 Die
♦ One set of M14-M16 Die
♦ One set of M18-M22 Die
♦ One set of M24-M27 Die
♦ One set of M30-M33 Die
♦ One set of 1/2"-2"Cutter Kit
♦ One set of 1/2"-2"Reamer Kit
♦ Three pcs of Tubular Supporter
OPTIONAL ACCESSORIES
♦ Foot Switch
♦ Die Head special for BSPP, BSW, UNC, conduit threads
♦ Threader Stands

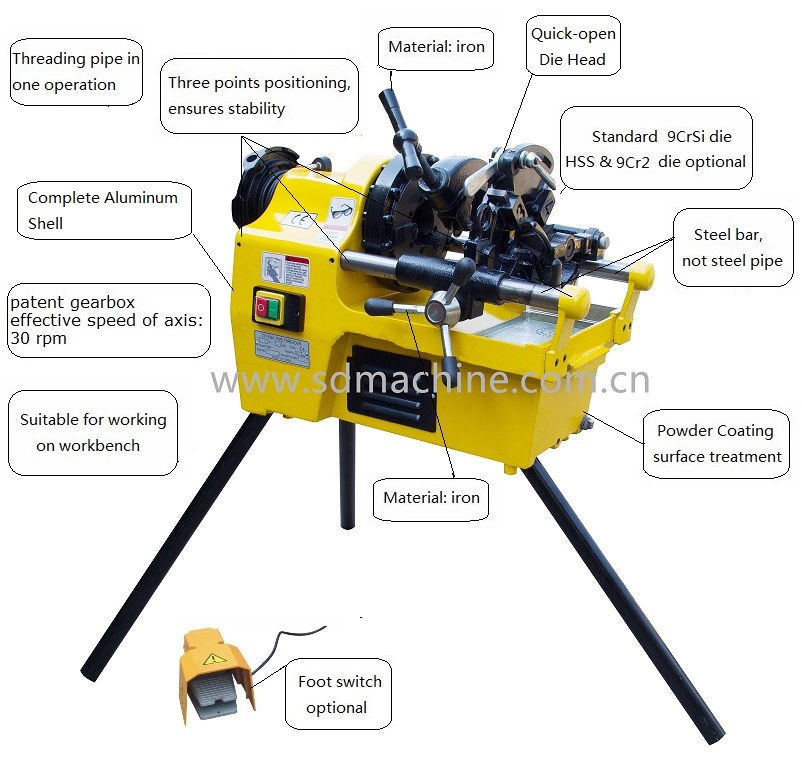

Detailed Picture
Related Products
Professional manufacturer of electric tube cutting and threading machine products
1/2"-2.1/2" Pipe Threading Machine
Model：Z1T-SD65 Capacity: 1/2"-2.1/2"
1/2"-2" & M12-M33 Multi-Function Pipe Threading Machine
Model：Z1T-R2A Capacity: 1/2" - 2" & M12 -M33
1/2"-2" Pipe Threading Machine
Model：Z1T-R2 Capacity: 1/2" - 2"

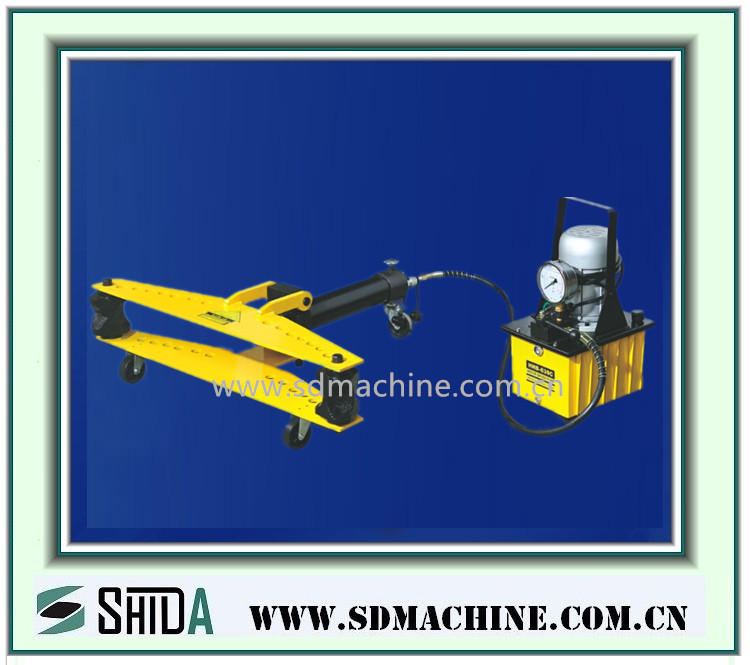

1/2”-4" Electro-Hydraulic Pipe Bender
