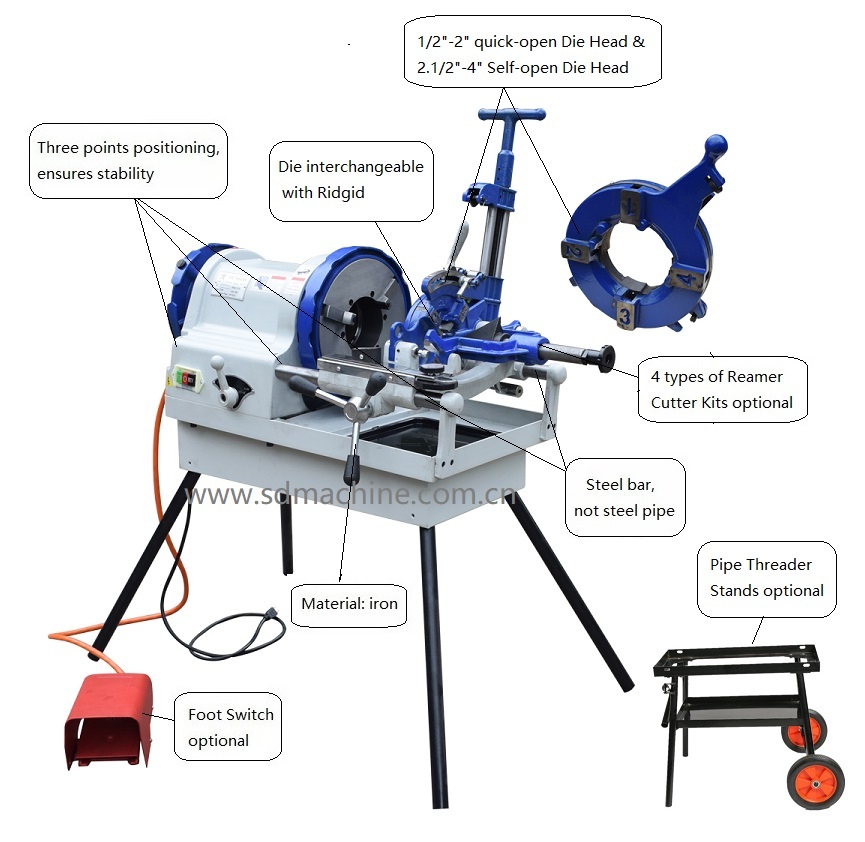

1/2"-4" Multi-Function Pipe Threading Machine with Ridgid Interchangeable Die

Model:Z1T-SD100R



Key words:

1/2"-4" Multi-Function Pipe Threading Machine with Ridgid Interchangeable Die


Message

Product Details


Model:Z1T-SD100R

♦ 1/4"-2" quick-open die head with dies which fit for RIDGID Dies.
♦ 2-1/2"-4" self-open profiling die head works with profiling system, enables precise straight tapes.
♦ Foot switch and FOR/OFF/REV Switch optional, emergency stop.
♦ RIDGID interchanged quick-install chuck jaw inserts.
♦ Oil back-flow device, keeping oil flowing from die head back to oil tank.
♦ High torque motor goes in forward and Reverse for easy clean-up of the threads and removal of pipe.



Main Technical Parameter



Main Parameters

Paramters Content

Pipe Capacity

1/4"-4"

Applicable Threader Standard

 BSPT,NPT

Output Power

1100W

Efficient Speed

11/22 RPM

Voltage

120V or 110V, single phase, or customized

Frequency

50Hz or 60Hz

Die

1/2”-3/4”, 1”-2”, RIDGID interchangeable

2.1/2”-4”

Gross/Net Weight

145/128Kg

Packing Size

1000x605x630mm



Standard Accessories

♦ One set of Quick-open Die Head & one set of self-open Die Head

♦ One set of 1/2”-3/4” Die (Ridgid Interchangeable)

♦ One set of 1”-2” Die (Ridgid Interchangeable)

♦ One set of 2.1/2”-4” Die

♦ One set of 1/2"-4" Cutter Kit

♦ One set of 1/2"-4" Reamer Cutter Kit

♦ Four pcs of tubular supporter

♦ Foot Switch



Optional Accessories

♦ Reverse Switch

♦ Threader Stands

♦ One set of 1/4”-3/8” Die



Detailed Picture
