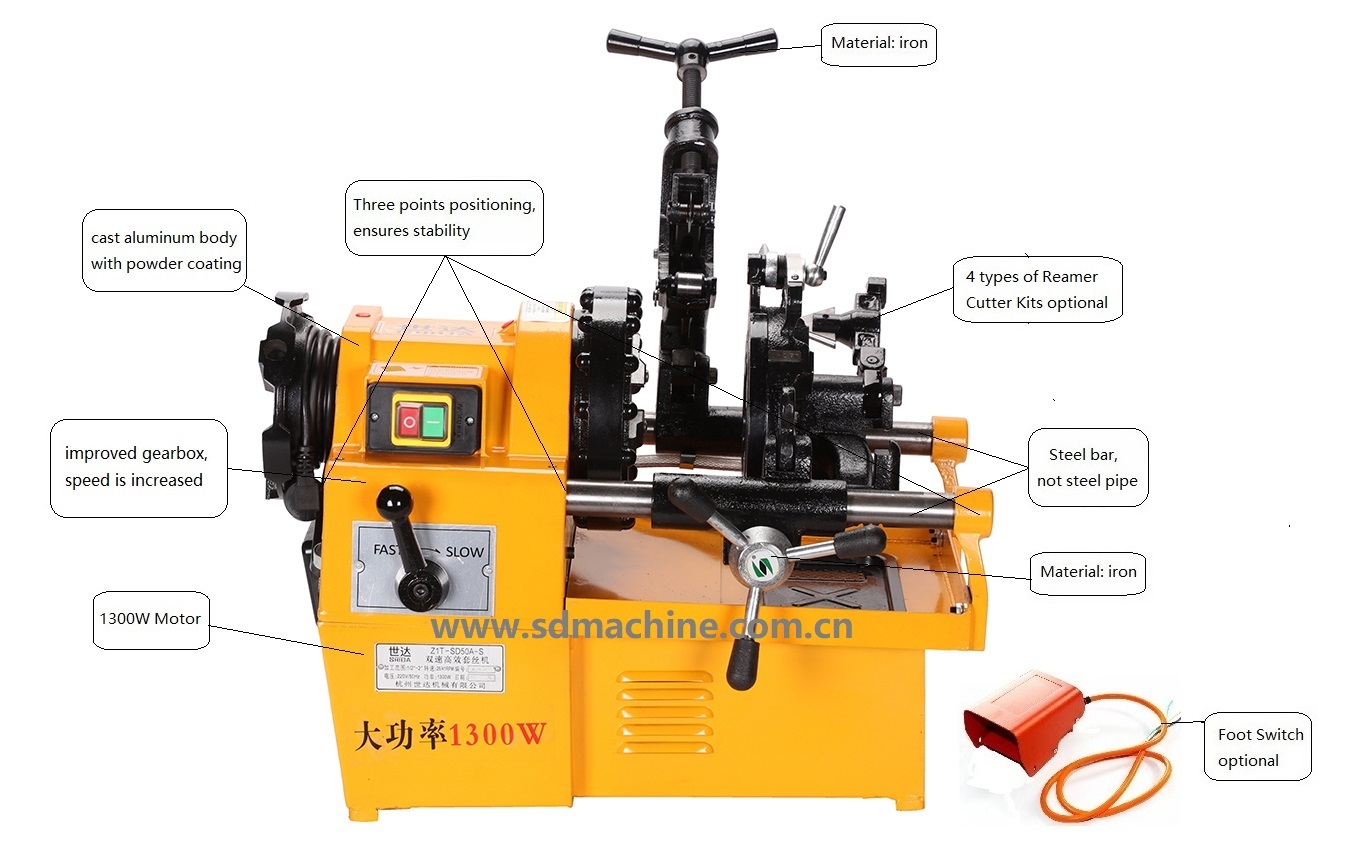

Z1T-SD50A-S High Speed Multi-Function Pipe Threading Machine

Model：Z1T-SD50A-S ♦ 1300W Motor, full size threading in one operation. ♦ Big Gear is made of Alloy steel inclined teeth, after special forging and queching treatment, its wear resistance is enhanced, working together with high-efficiency two-speed Gearbox, to greatly improve the work efficiency. ♦ 50A Multi-function die head is standard, could process BSPT, NPT, conduit, Metric threads by exchanging dies. ♦ Sledge guide post is made of steel bar, with thickened lifter supporter, increases stability of machine operation, prolongs service life of machine. ♦ Automatic coiling system, through the die head, with integral oil reservoir, prolongs service life of die.   Main Technical Parameter   Main Parameters Paramters Content Pipe Capacity 1/4"-2", M12-M33, C15-C51 Applicable Threader Standard BSPT,NPT, Metric, BSPP, BSW (need to exchange additional dies) Output Power 1300W   Efficient Speed 26/41 RPM Voltage 220V or 110V single phase, or customized Frequency 50Hz or 60Hz Die  Standard: 1/2"-3/4", 1"-2" Optional: 1/4"-3/8",M12,M14-M16,M18-M22,M24-M27,M30-M33, etc Gross/Net Weight 83/71Kg Packing Size 700x450x550mm   Standard Accessories ♦ One set of quick-open Die Head ♦ One set of 1/2"-3/4" Die ♦ One set of 1"-2" Die ♦ One set of 1/2"-2"Cutter Kit ♦ One set of 1/2"-2"Reamer Kit ♦ Three pcs of Tubular Supporter     Optional Accessories ♦ Quick-open Die head for Metric threads ♦ Metric Dies ♦ Foot Switch ♦ Die Head special for BSPP, BSW, UNC, conduit threads ♦ Conduit Dies ♦ Threader Stands   Detailed Picture
