♦ Machine maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive.
♦ Large chip tray and oil reservoir makes machine ideal for longer uninterrupted threading.
♦ High clearance carriage making the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy.
♦ Complete aluminum body, sledge guide post is made of steel bar, with thickened lifter supporter, increases stability of machine operation, prolongs service life of machine.

Main Technical Parameter

Main Parameters	Paramters Content
Pipe Capacity	2.1/2"-6"
Applicable Threader Standard	BSPT,NPT
Output Power	1100W
Efficient Speed	5/17.5 RPM
Voltage	380V 3 phases, or customized
Frequency	50Hz or 60Hz
Die	2.1/2”-4”, 5”-6”
Gross/Net Weight	213/186Kg
Packing Size	1100x700x700mm

Standard Accessories

♦ Two sets of self-open Die Heads

♦ One set of 2.1/2”-4” Die

♦ One set of 5”-6” Die

♦ One set of 2.1/2"-6" Cutter Kit

♦ One set of 2.1/2"-6" Reamer Cutter Kit

♦ Four pcs of tubular supporter

Optional Accessories

♦ Foot Switch

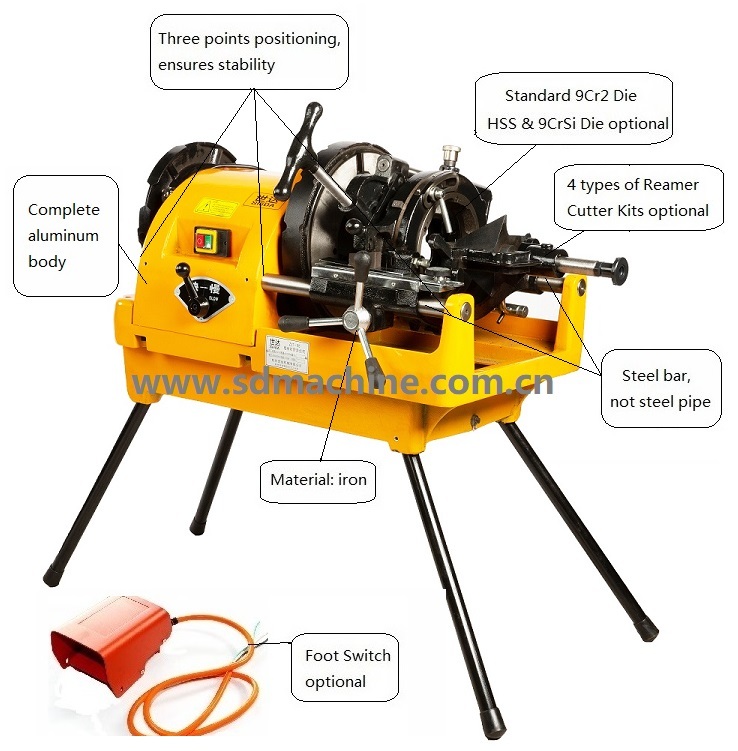

Detailed Picture
