1"-8" Pipe Groove Rolling Machine
Model：SDG-1X
Classification:
Key words:
1"-8" Pipe Groove Rolling Machine
Message
Product Details
Model：SDG6
♦ Machine is used to form roll grooves on steel pipes, size range from 1".to 8" (DN25 m DN200) SCH10 to SCH40.
♦ Suitable for both mass fabrication in workshop or on jobsite. It is a full-featured roll groover integrated with motor, hydraulic feeding pump, foot switch and pipe stand.
♦ Inbuilt high-performance gear reducing motor contributes compact size and low noise.
♦ The unique integrated hydraulic feeding pump and groove depth lock nut ensure high quality grooves and high grooving efficiency.
Main Technical Parameter
Main Parameters | Paramters Content |
Pipe Capacity | 1"-8"(DN25-DN200, Φ33-Φ219mm) SCH10/40 steel pipe |
Max Wall Thickness | 8mm |
Power | 800W |
Efficient Speed | 23 RPM |
Voltage | 220V, single phases, or customized |
Frequency | 50Hz or 60Hz |
Drive Roller | 1"-1.1/2", 2"-6", 8" |
Groove Roller | 1"-1.1/2", 2"-6", 8" |
Gross/Net Weight | 98/83Kg |
Packing Size | 720x420x780mm |

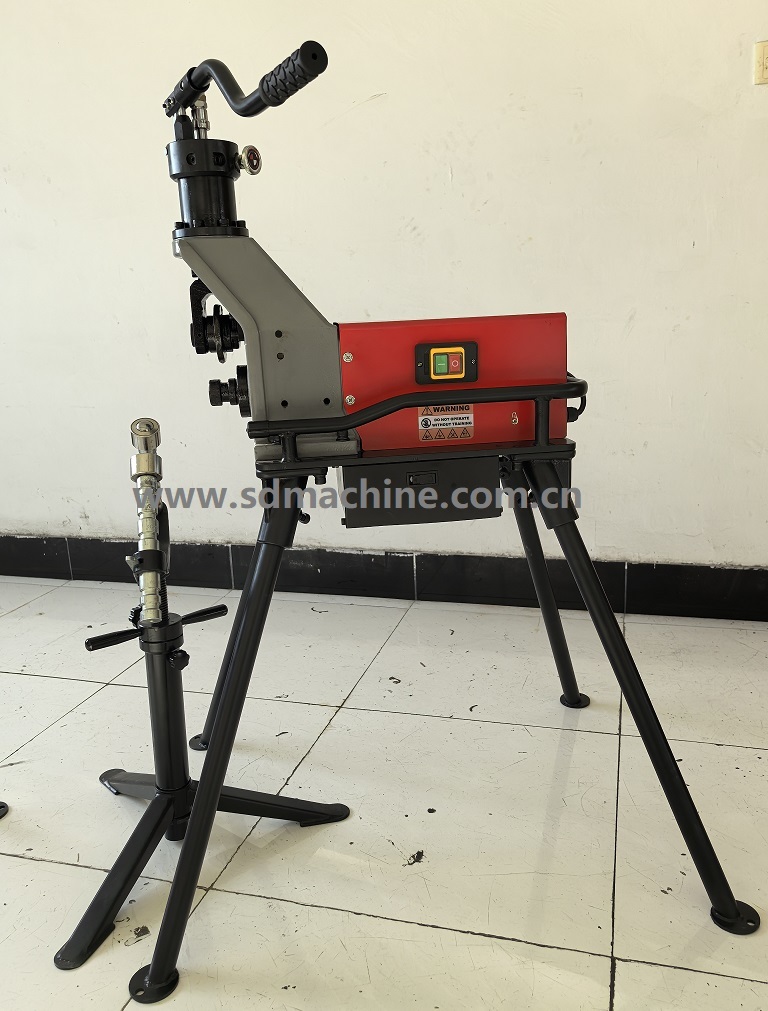

Detailed Picture
