♦ Machine maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive.
♦ Large chip tray and oil reservoir makes machine ideal for longer uninterrupted threading.
♦ High clearance carriage making the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy.
♦ Complete aluminum body, sledge guide post is made of steel bar, with thickened lifter supporter, increases stability of machine operation, prolongs service life of machine.

Main Technical Parameter

Main Parameters	Paramters Content
Pipe Capacity	1/2"-4"
Applicable Threader Standard	BSPT,NPT
Output Power	750W
Efficient Speed	8.5/24 RPM
Voltage	220V or 110V single phase, or customized
Frequency	50Hz or 60Hz
Die	1/2”-3/4”, 1”-2”, 2.1/2”-4”
Gross/Net Weight	182/158Kg
Packing Size	1100x680x660mm

Standard Accessories

♦ Two sets of self-open Die Heads

♦ One set of 1/2”-3/4” Die

♦ One set of 1”-2” Die

♦ One set of 2.1/2”-4” Die

♦ One set of 1/2"-4" Cutter Kit

♦ One set of 1/2"-4" Reamer Cutter Kit

♦ Four pcs of tubular supporter

Optional Accessories

♦ Foot Switch

♦ Threader Stands

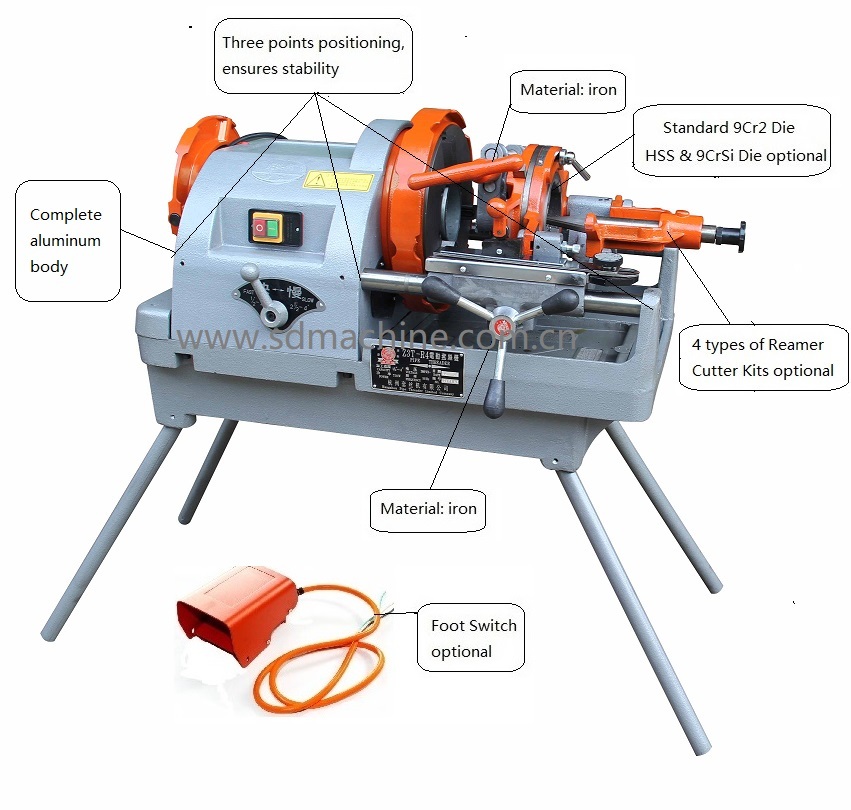

Detailed Picture

Immediate Consultation

If you are interested in our products, please leave your email, we will contact you as soon as possible, thank you!

We are willing to cooperate wholeheartedly with people from all walks of life, welcome friends from all walks of life to visit us, create brilliant!
