1/2"-3" & M12-M33 Multi-Function Pipe Threading Machine

Model:Z1T-SD80A



Key words:

1/2"-3" & M12-M33 Multi-Function Pipe Threading Machine


Message

Product Details


ModelZ1T-SD80A

♦New design, parts could be interchanged with REX machine.

♦Alloy gear bath lubrication, ensures long service life.

♦50A quick-open die head and 2.1/2”-3” quick-open die head, could process BSPT, NPT, or Metric threads by exchanging dies.

♦Complete aluminum body, sledge guide post is made of steel bar, with thickened lifter supporter, increases stability of machine operation, prolongs service life of machine.



Main Technical Parameter



Main Parameters

Paramters Content

Pipe Capacity

1/2"-3", M12-M33

Applicable Threader Standard

 BSPT,NPT, Metric

Output Power

750W

Efficient Speed

19/27 RPM

Voltage

220V or 110V single phase, or customized

Frequency

50Hz or 60Hz

Die  Size

Standard: 1/2”-3/4”, 1”-2”, 2.1/2”-3”, M12M14-M16M18-M22M24-M27M30-M33

Optional: 1/4”-3/8”, etc

Gross/Net Weight

117/101Kg

Packing Size

900x540x540mm



Standard Accessories

♦ Three sets of quick-open Die Heads (1/2”-2”, 2.1/2”-3”, M12-M33)

♦ One set of 1/2”-3/4” Die

♦ One set of 1”-2” Die

♦ One set of 2.1/2”-3” Die

♦ One set of M12 Die

♦ One set of M14-M16 Die

♦ One set of M18-M22 Die

♦ One set of M24-M27 Die

♦ One set of M30-M33 Die

♦ One set of 1/2"-3" Cutter Kit

♦ One set of 1/2"-3" Reamer Kit

♦ Four pcs of Tubular Supporter



Optional Accessories

♦ Foot Switch

♦ Die Head special for BSPP, BSW, UNC, conduit threads

♦ 1/4”-3/8” Die

♦ Threader Stands

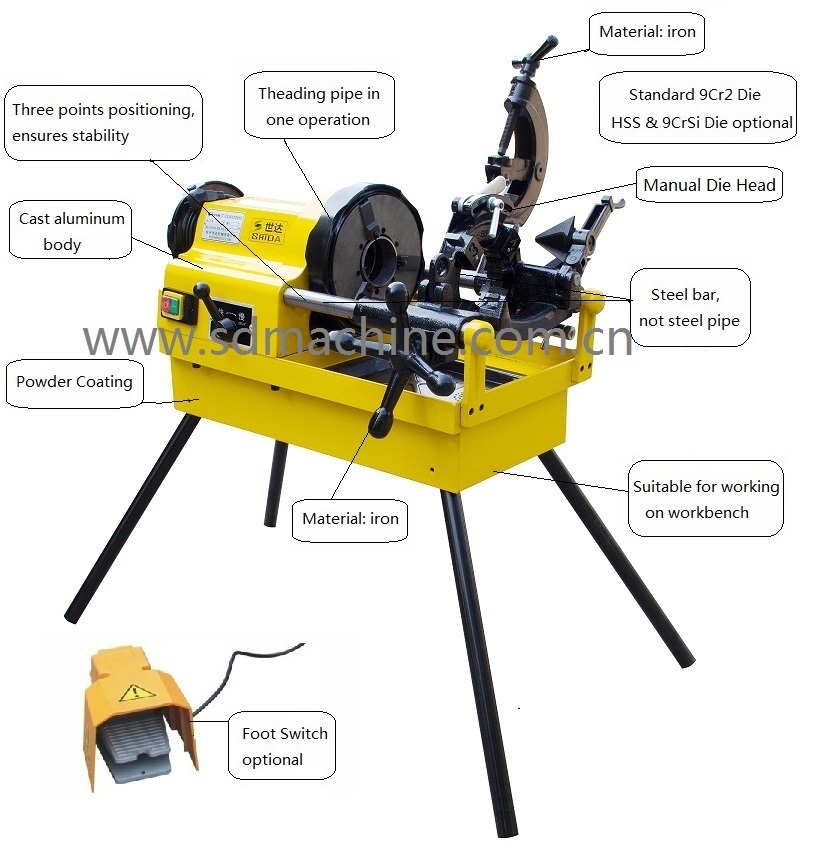

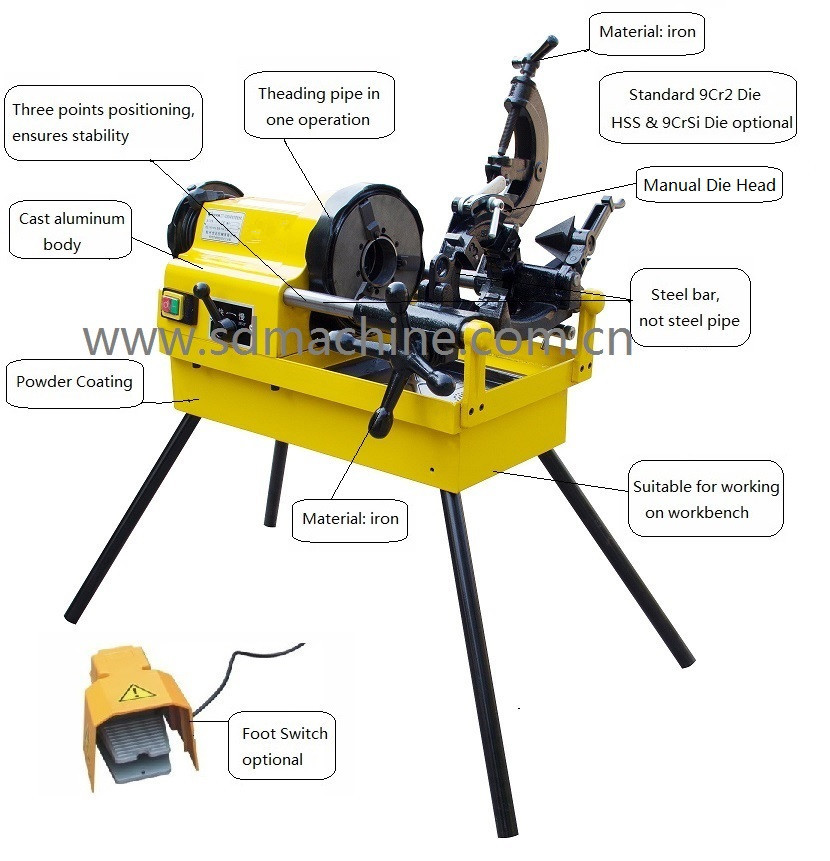

Detailed Picture
