♦ Full size threading completed in one operation.
♦ Self-open profiling die head, working with Shida original profiling system, enables precise straight tapes, 20mm dies performs higher threading speed and requires less power consumption.
♦ Compact design with cast aluminum body, sledge guide post is made of steel bar, with thickened lifter supporter, increases stability of machine operation, prolongs service life of machine.
♦ Automatic coiling system, through the die head, with integral oil reservoir, prolongs service life of die.

Main Technical Parameter

Main Parameters	Paramters Content
Pipe Capacity	1/2"-3"
Applicable Threader Standard	BSPT,NPT
Output Power	750W
Efficient Speed	12/26 RPM
Voltage	220V～ or 110V～ single phase, or customized
Frequency	50Hz or 60Hz
Die	1/2”-3/4”, 1”-2”, 2.1/2”-3”
Gross/Net Weight	117/101Kg
Packing Size	950x550x575mm

Standard Accessories

♦ Two sets of self-open Die Heads

♦ One set of 1/2”-3/4” Die

♦ One set of 1”-2” Die

♦ One set of 2.1/2”-3” Die

♦ One set of 1/2"-3"Cutter Kit

♦ One set of 1/2"-3"Reamer Kit

♦ Four pcs of tubular supporter

Optional Accessories

♦ Foot Switch

♦ Threader Stands

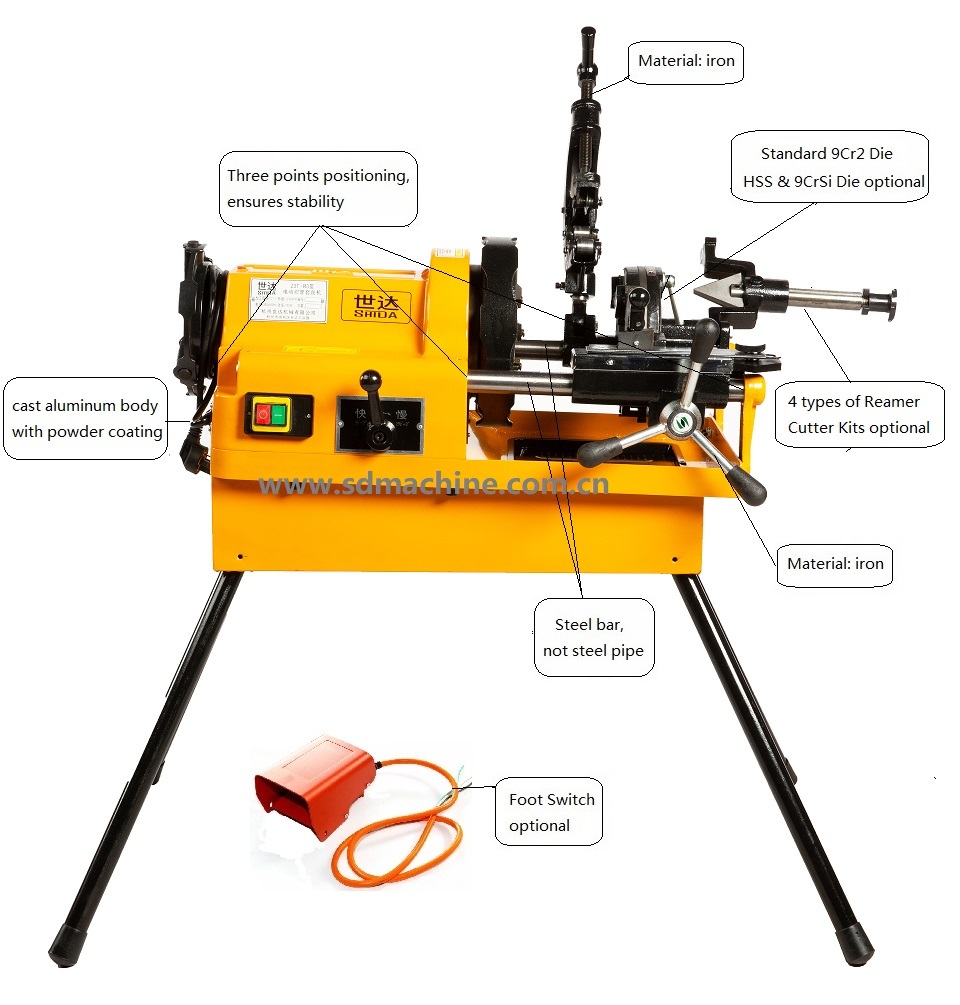

Detailed Picture
